Film Lamination Machine Series

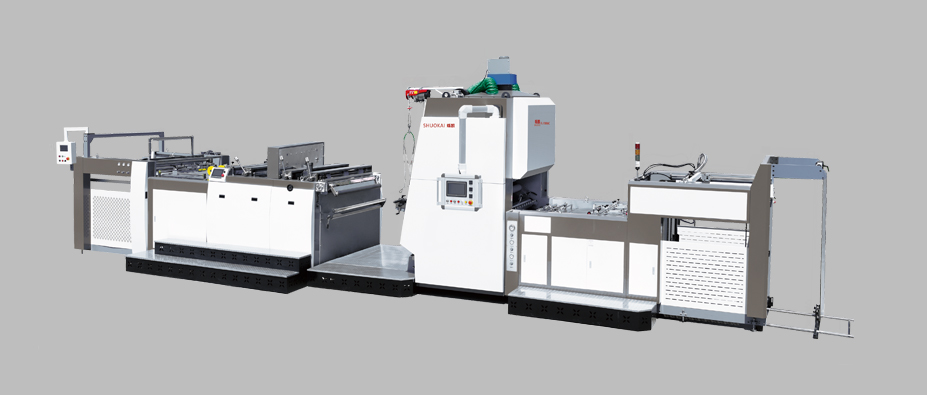

FL-C Automatic Film Laminating Machine(High Speed Chain-Knif

    ' width=
Product introduction

Configuration

Feeding System Side Lay Regulator Electromagnetic Heating Technology
Anti-Curling Device High Speed Collection Chain Knife Cutting System
Man-Machine Interface System Powder Removing Device Ceramic Roller Gluing Device (Optional）


Technical Parameters

Model FL-1100MC FL-1100LC FL-1300LC
Max. Laminating Length 1080mm 1080mm 1280mm
Machine Sheed 10-85m/min 10-85 m/min l0-85m/min
Applicable Sheet Size 1080*1200-350*350mm 1080*1450-350*350mm 1300* 1650-350*350mm
Applicable Sheet Weight 100-500g/㎡ 100-500g/㎡ 100-500g/㎡
Total Power 68KW 68KW 73KW
Overall Weight 10500kg 11000kg 12500kg
Dimension 12485*2300*3300mm 13295*2300*3300mm 13600*2550*3300mm
Picture is only for reference,please take the object as the standard No prior notice if any change
FX-C Automatic Film Laminating Machine(Rotary-Knife Cutting)
